Q-CS1400

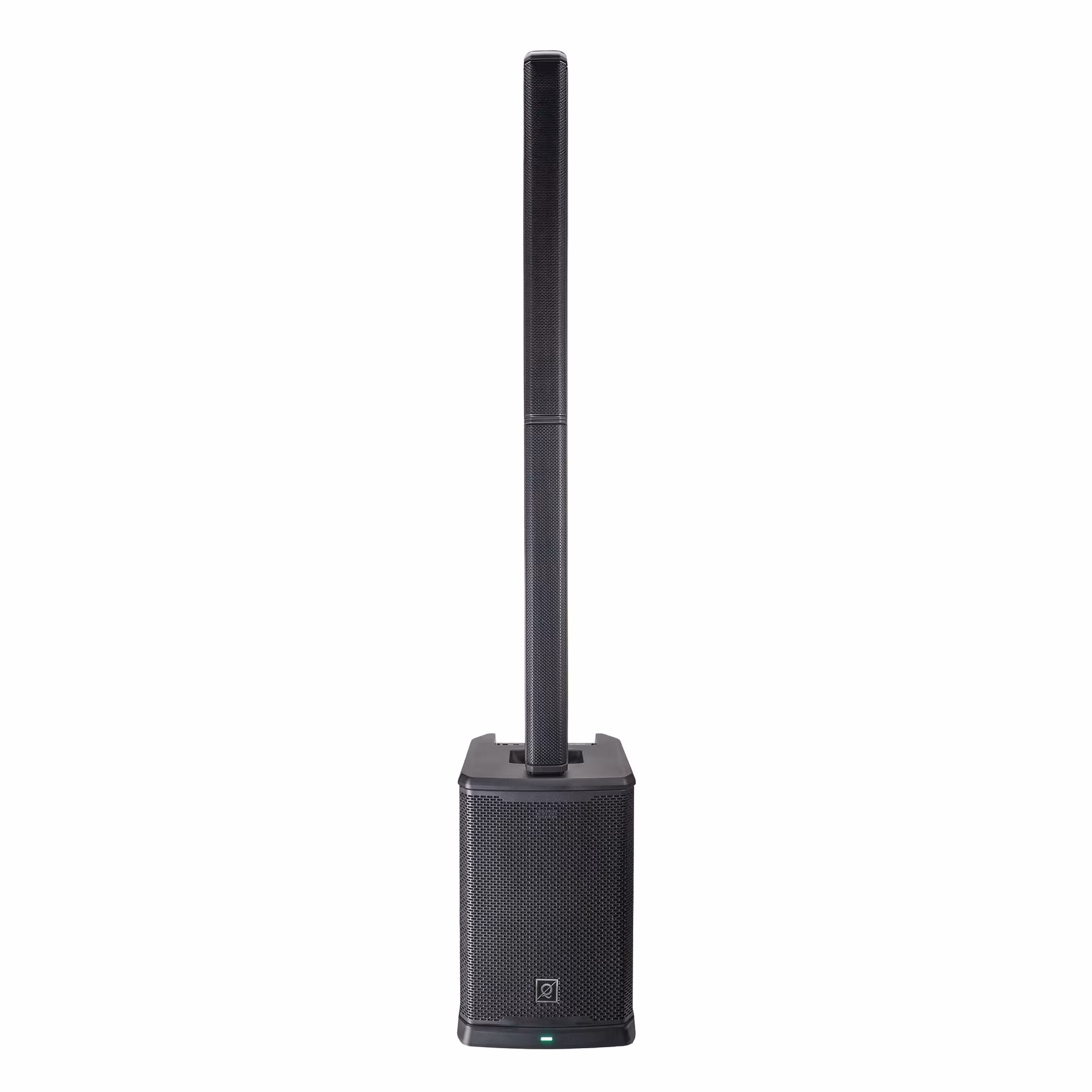

Q-CS1400 complete PA system, designed for professional sound reinforcement, music, voice and live events. It integrates a 12″ woofer with a 2.5″ voice coil and 2 arrays with 2.5″ MF transducers, combined with Class D amplification, integrated DSP and advanced connection features to provide a versatile, easy-to-configure solution.

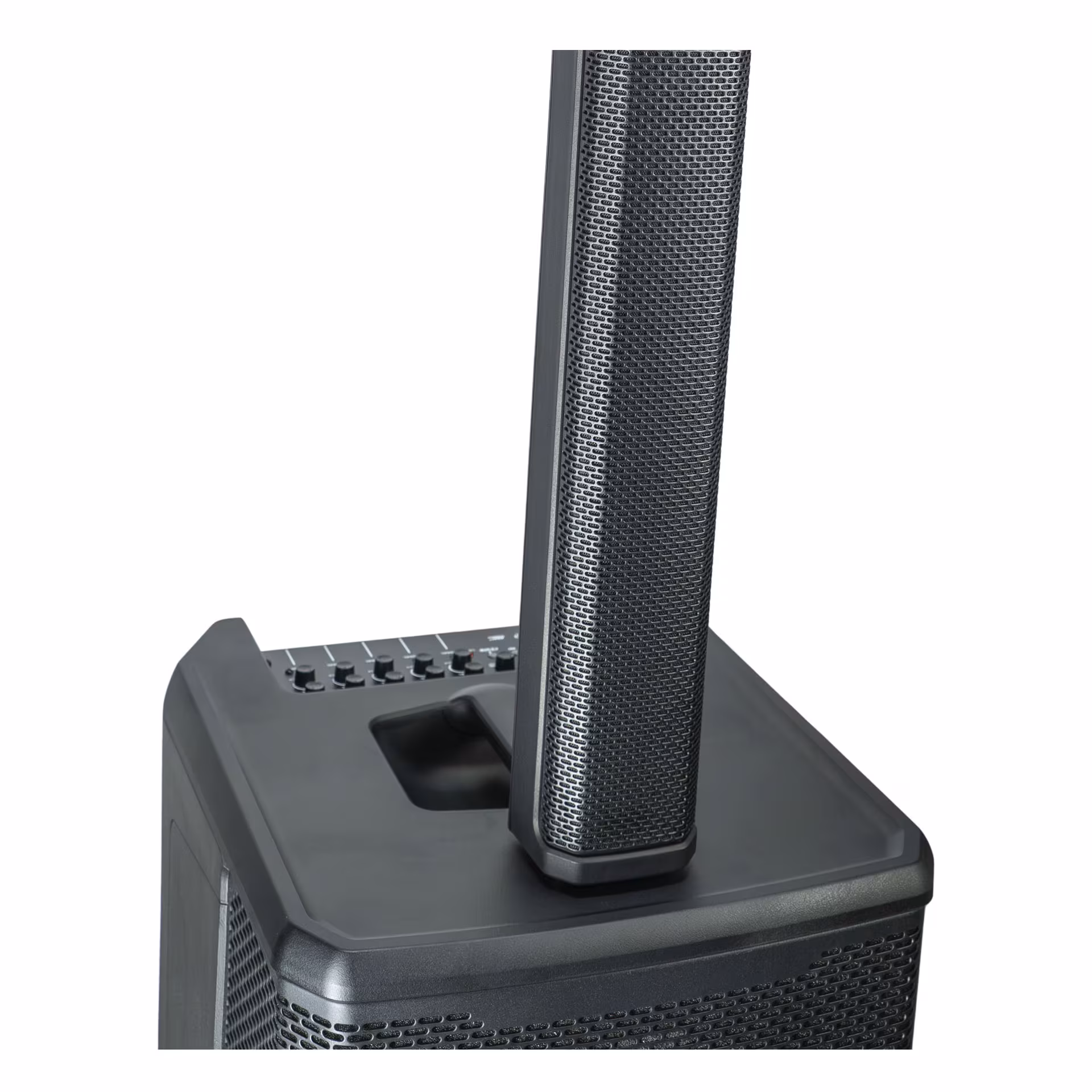

Complete PA system with 12″ woofer and dual midrange array.
700 W RMS, 1400 W maximum and 2800 W peak power.
Frequency response from 45 Hz to 20 kHz.
2 XLR combo microphone/line inputs, RCA, AUX, USB and wireless audio port with TWS system.
XLR output for connection to other audio equipment.
High-efficiency Class D amplifier.
DSP modes: Music, Live, Speech and Club.

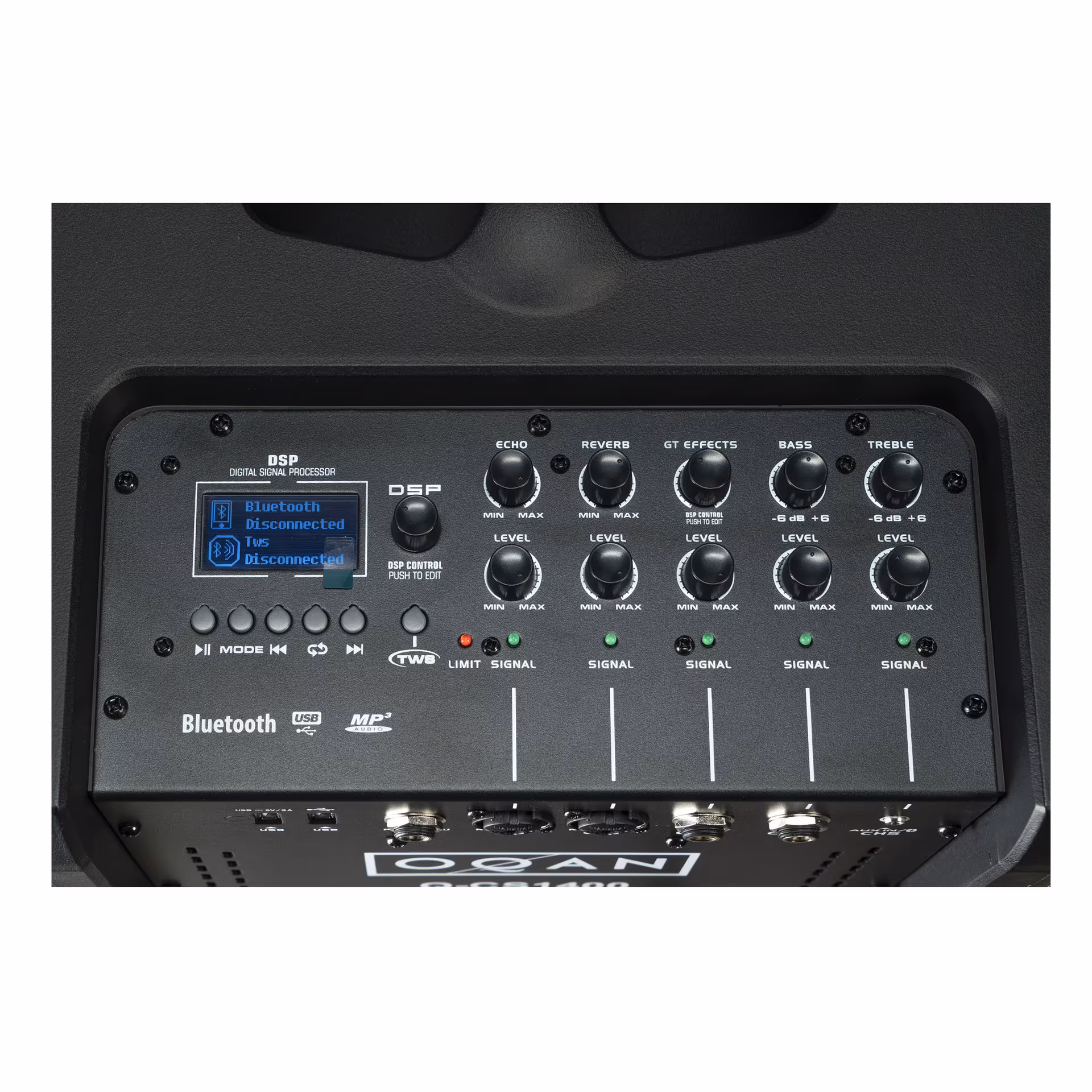

Includes professional DSP, display with menu and wireless stereo TWS system.

Specifications

Type	Complete PA System
Transducer	12″ woofer / 50oz magnet / 2.5″ VC

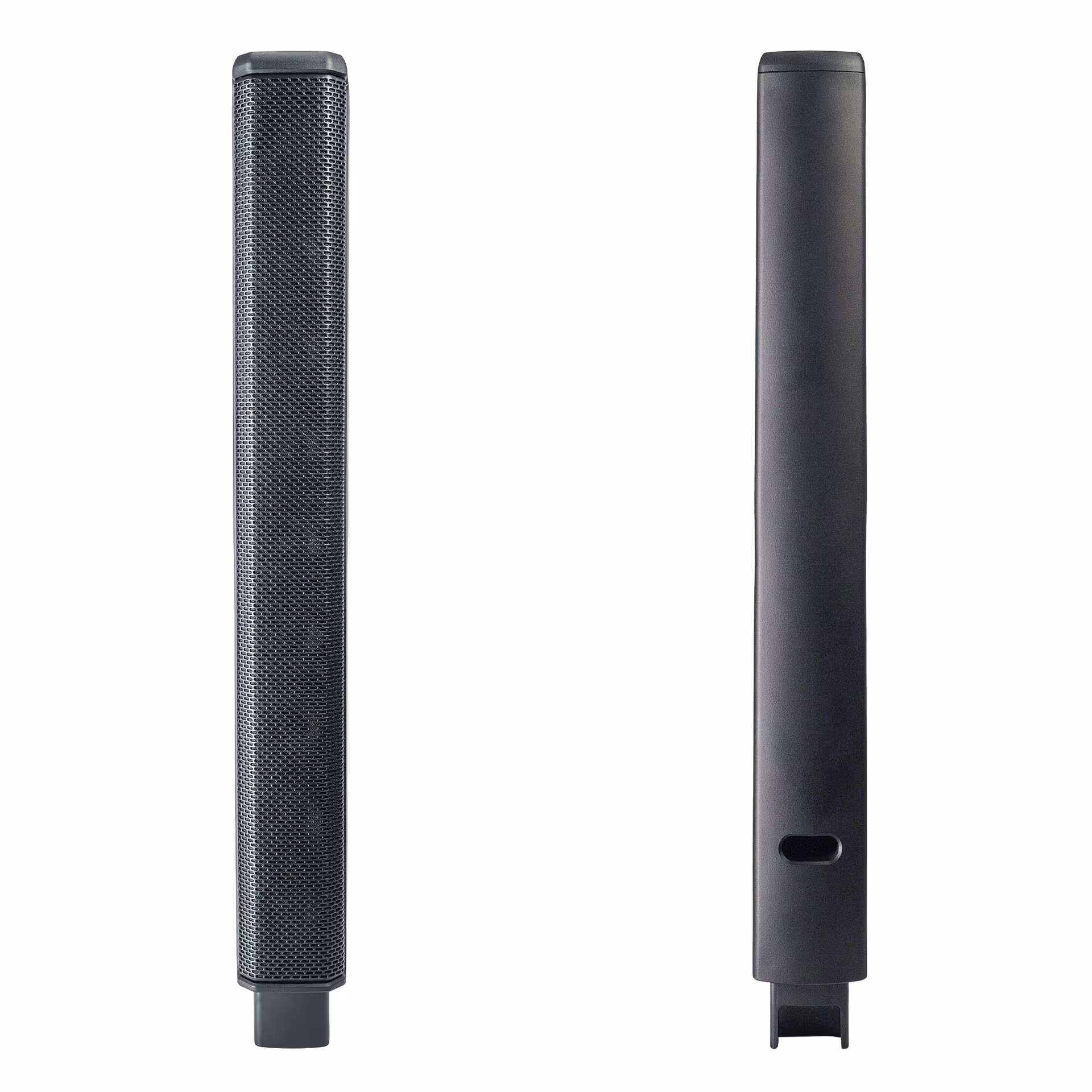

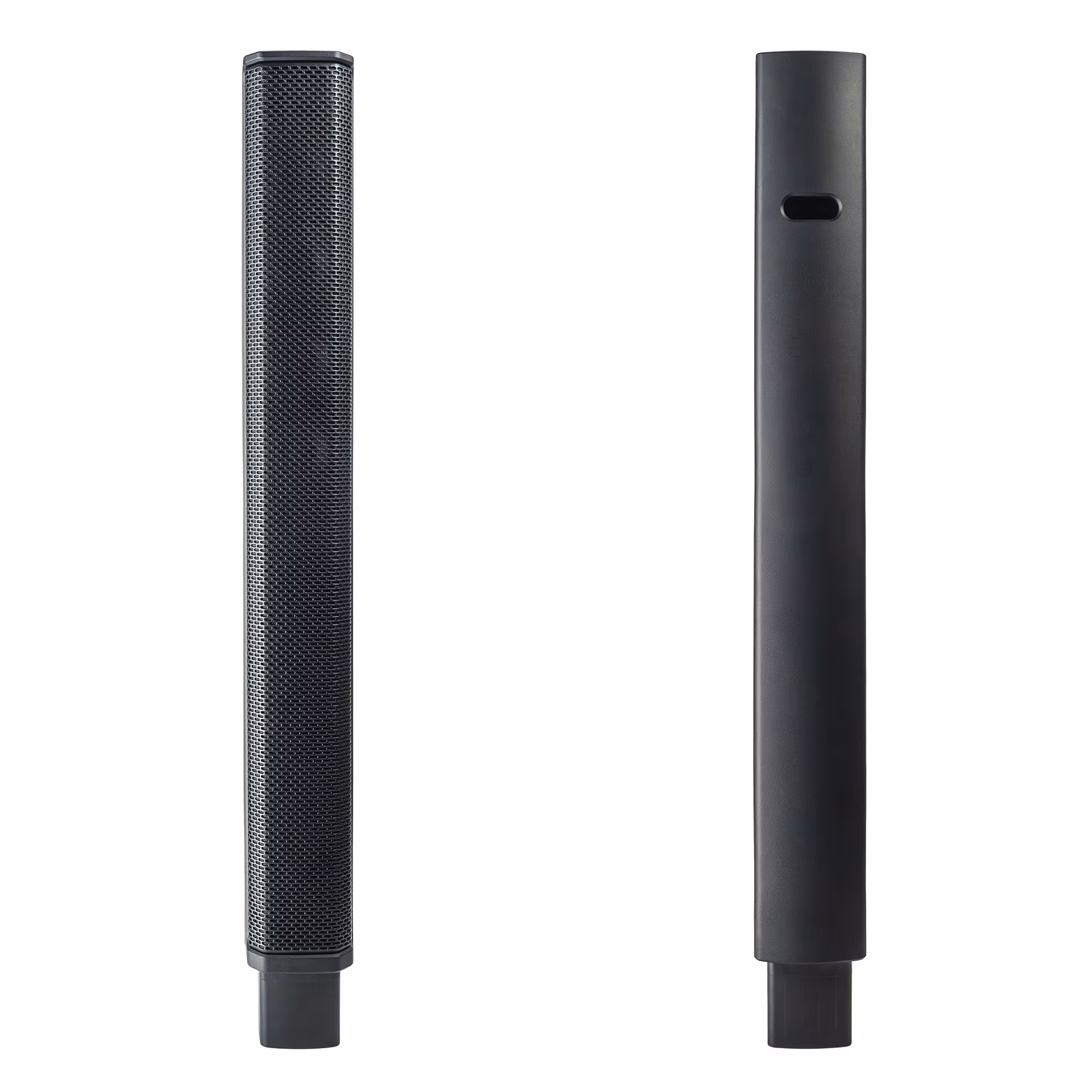

Driver	2 arrays · 12x 2.5″ MF transducers
Power	700W RMS / 1400W Max / 2800W Peak
Frequency response	45 Hz – 20 kHz (-10 dB)

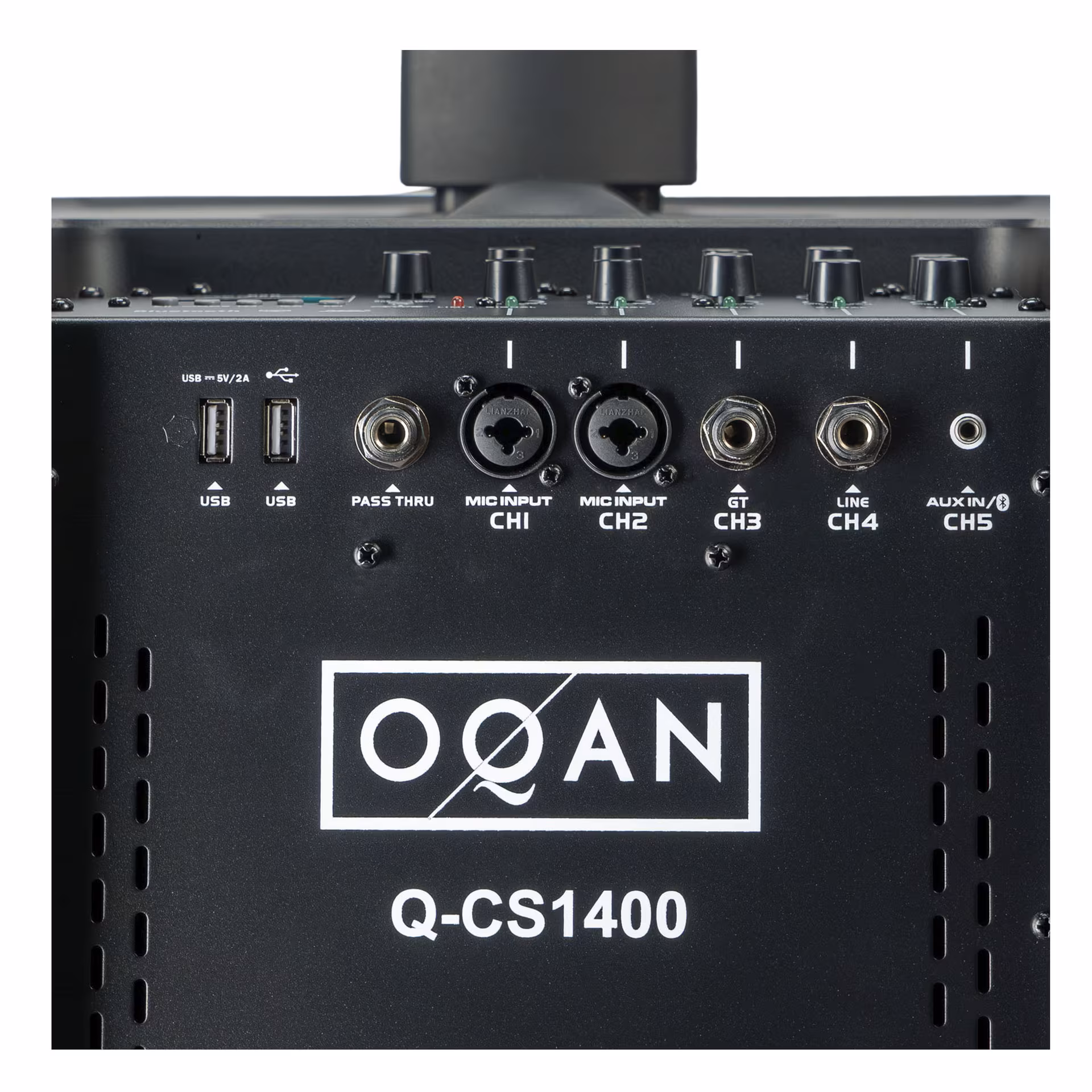

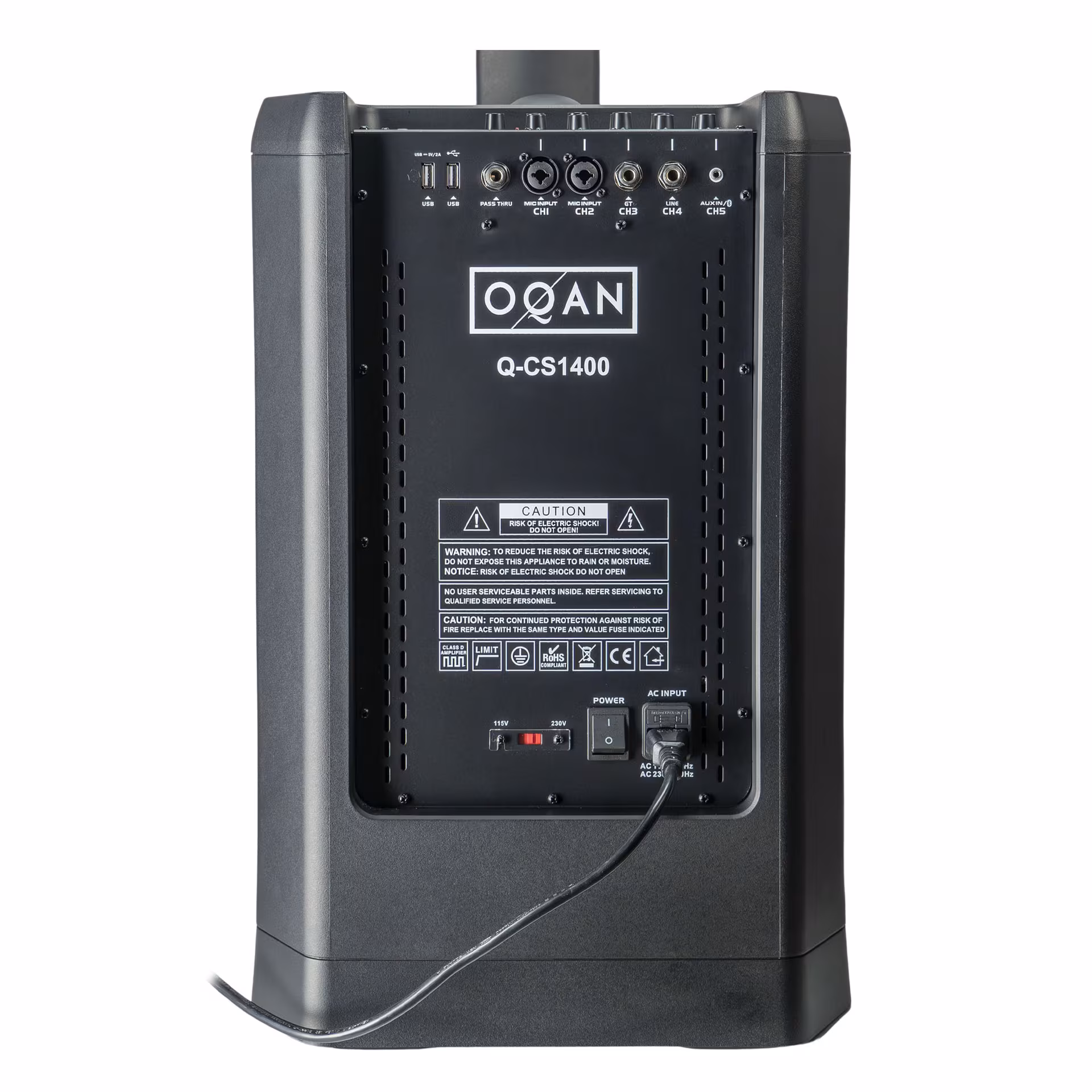

Inputs	2x XLR combo Mic/Line, RCA, AUX, USB, TWS wireless
Output	XLR
Amplifier	Class D
DSP modes	Music, Live, Speech, Club

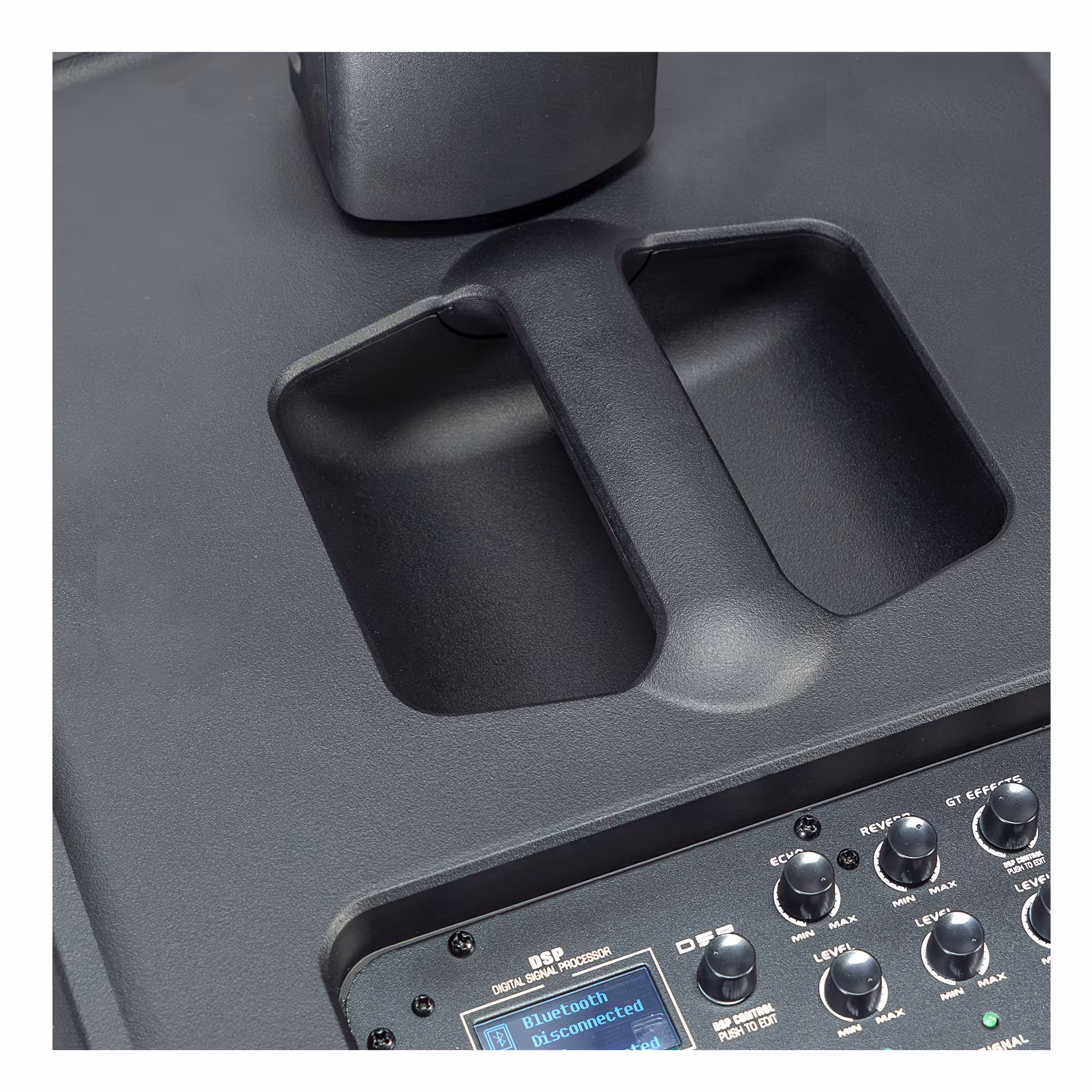

Extras	Display with menu, TWS Stereo
Max SPL	128 dB
Woofer dimensions	36.5 x 41.5 x 56.0 cm / 21 kg
Column dimensions	75.0 x 8.5 x 8.5 cm / 5 kg

SKU: 1016756 Category: Audio

Downloads & Support

Manual English Manual · EN Manual Spanish Manual · ES Manual French Manual · FR Manual Italian Manual · IT Manual Portuguese Manual · PT
